SPECIFICATIONS
Air Volume: 23-89 CFM
Brand Name: Jonsbo
Certification: CE,RoHS
Choice: yes
Fan Interface: 4PIN
Heatsink Material: Copper & Aluminum
High-concerned chemical: None
Model Number: TF3-360SCW
Origin: Mainland China
Package: Yes
Pump Interface: 4PIN
RGB Support: A-RGB
Radiator Size: 360
Radiator Type: 360mm
Series: TF3-360SCW
Supported CPU: LGA 1150,LGA 1155,LGA 1151,LGA1200,LGA 1156,AM4,LGA 1700,Socket AM5
Type: AIO Liquid Cooling Accessories
With Liquid: Yes
With Screen: Yes

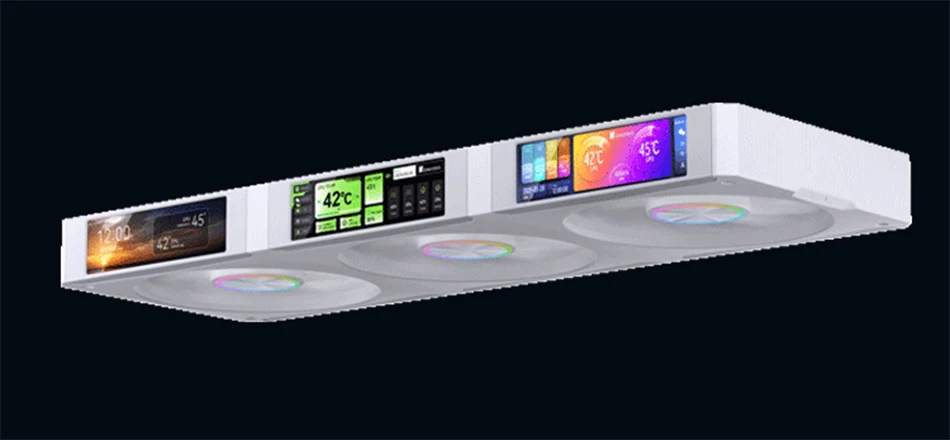

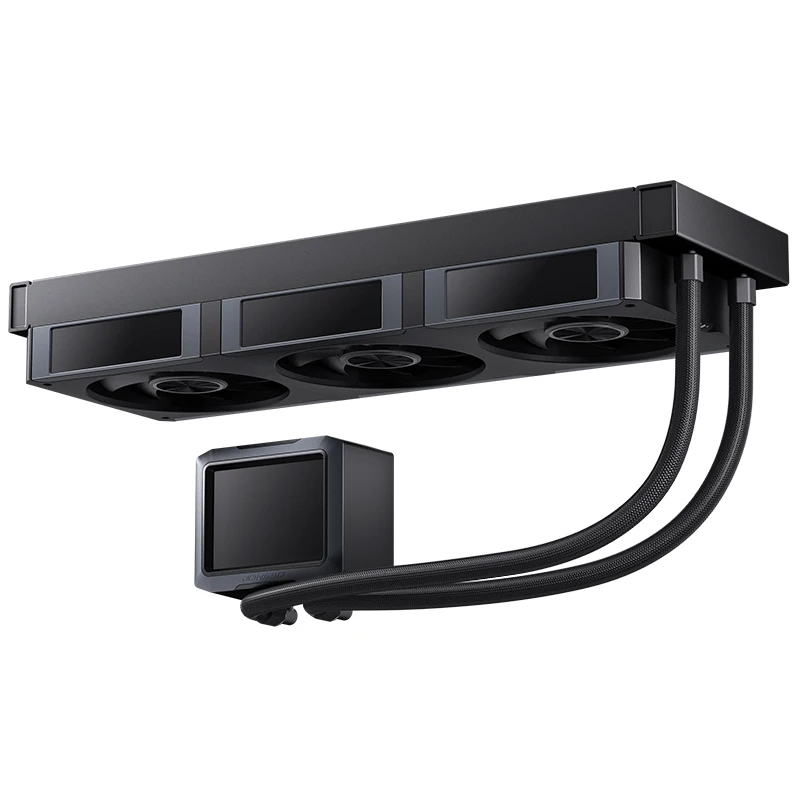

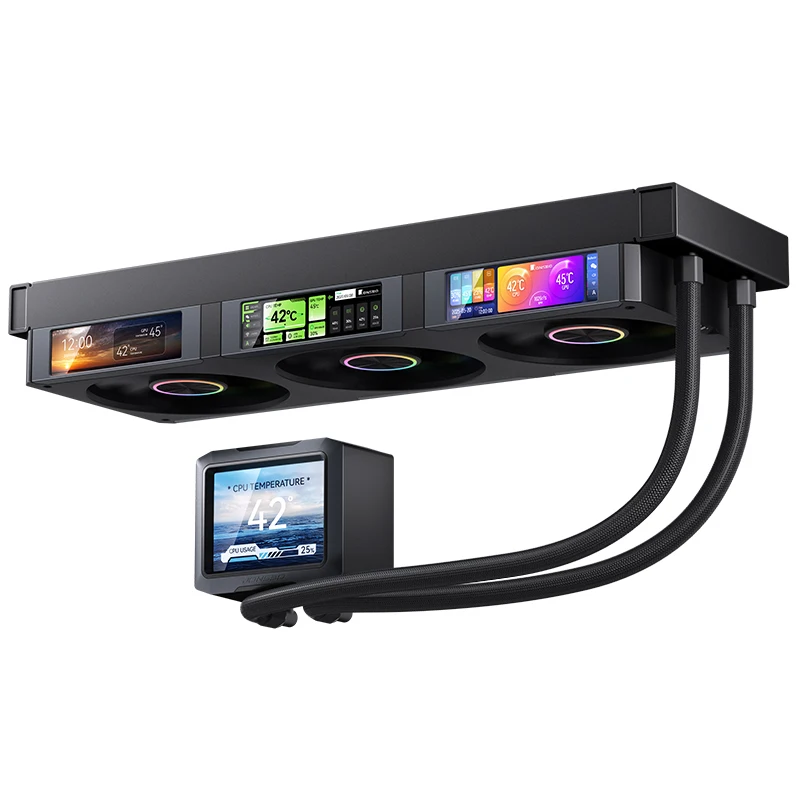

TF3-360SCB/TF3-360SCW

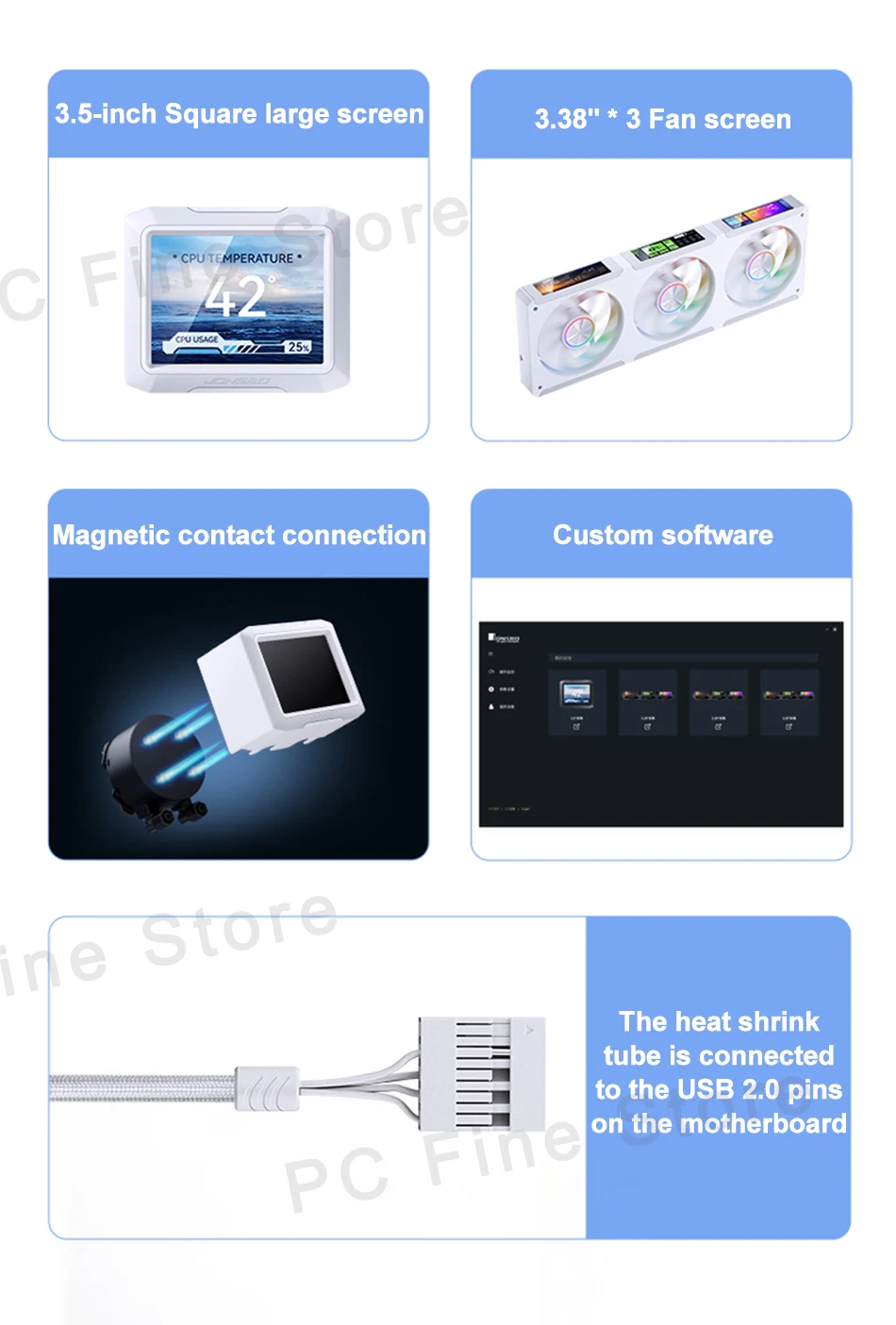

Product type: IPS 4-screen water-cooled

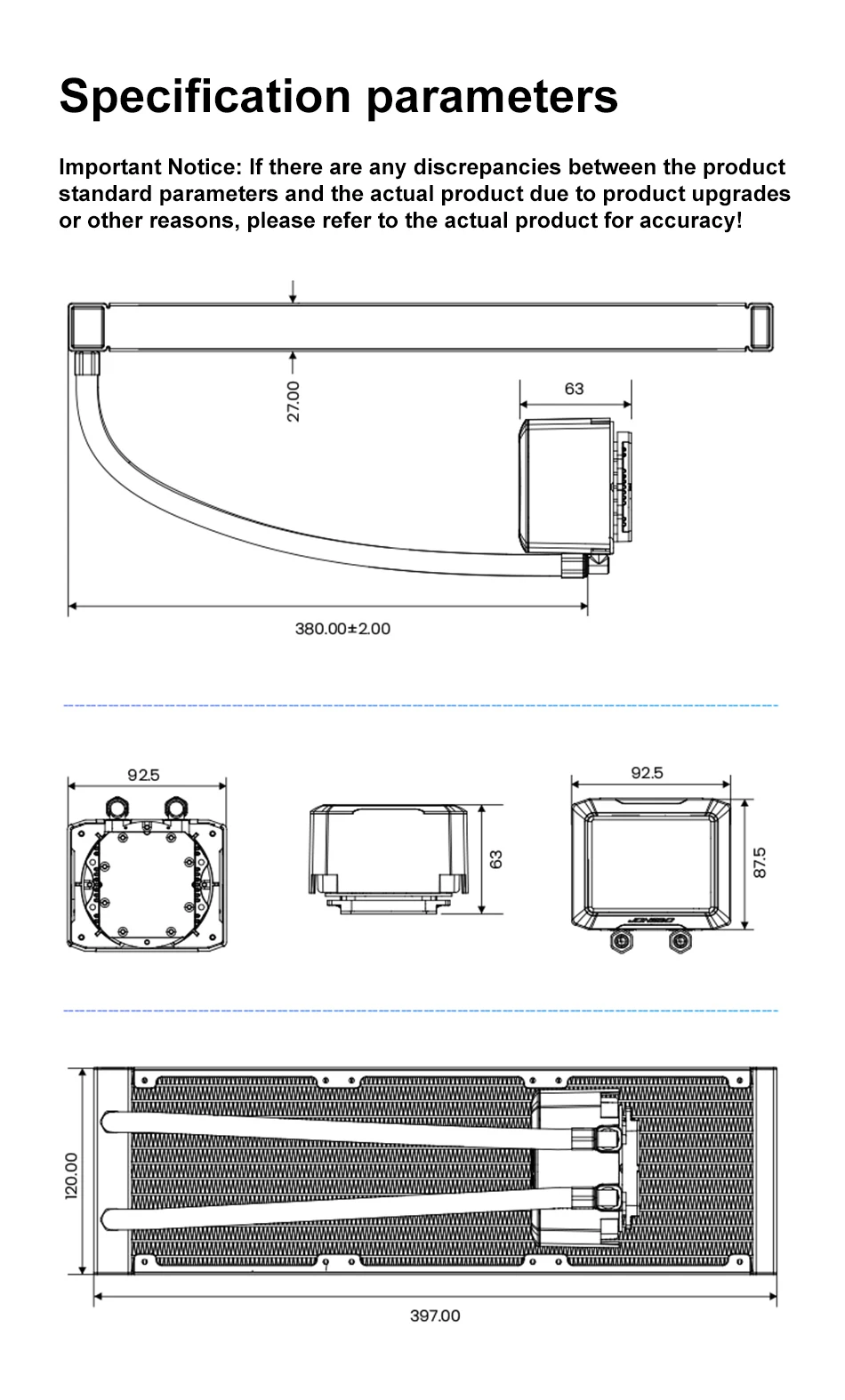

Product size:
Water pump: 92.5mm * 87.5mm * 63mm;

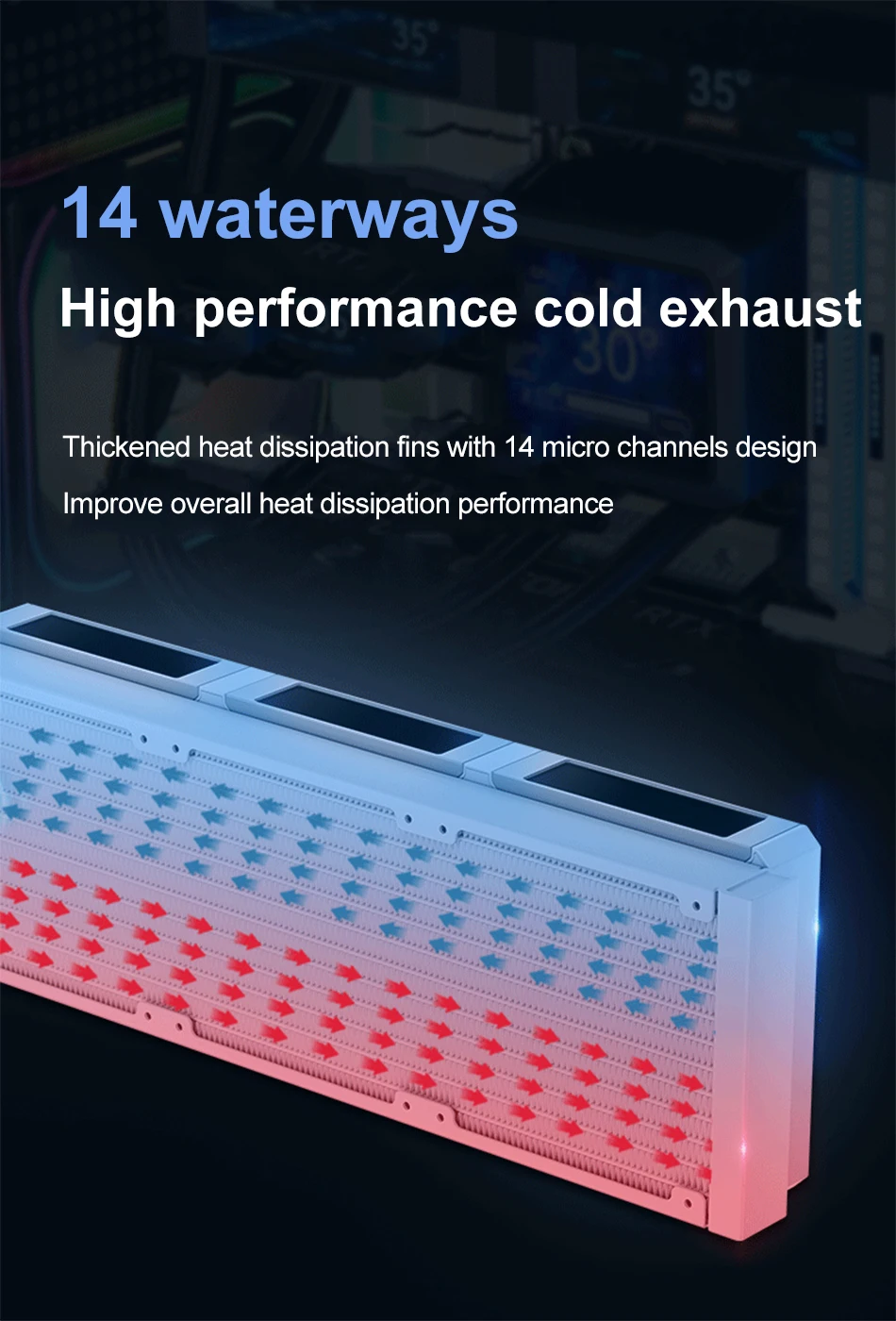

Heat sink: 397mm * 120mm * 27mm;

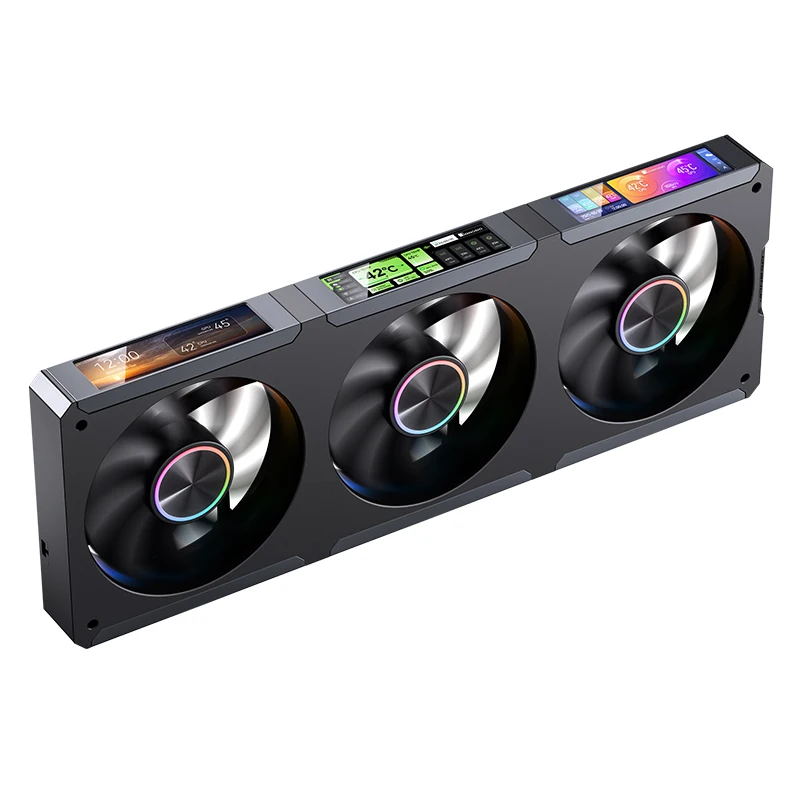

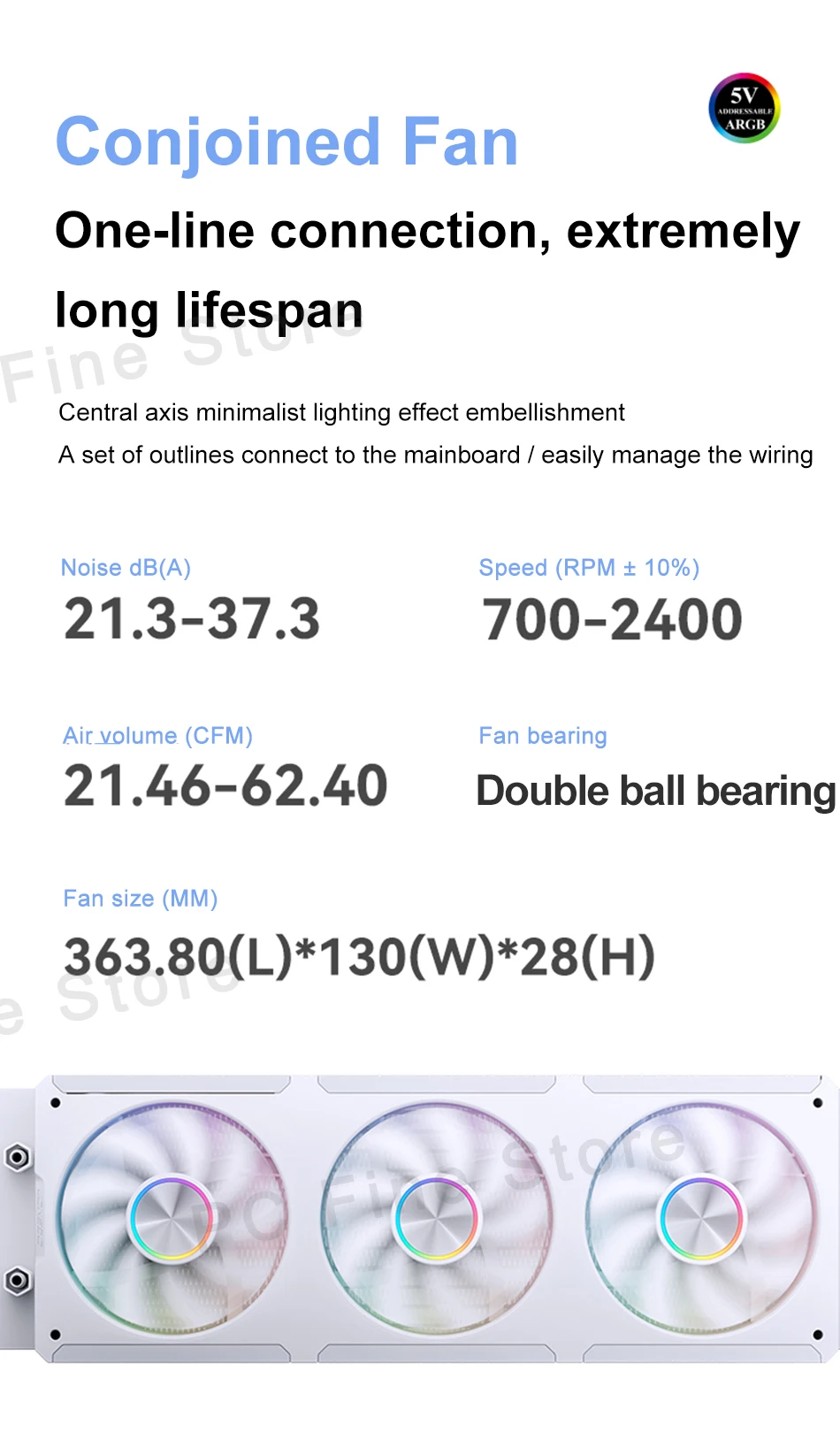

Fan: 363.8mm * 130mm * 28mm
Fan air volume: 21.46-62.40CFM (each)
Fan bearing: Double ball bearing
Fan speed: 700rpm~2400rpm (± 10%)
Fan interface: PWM 4PIN/ARGB 3PIN/LCD USB
Fan noise: 21.3-37.3 dB (A) (max)
Pump power: ≤ 4.2W
Pump noise: ≤ 30 dB (A)
Water pump voltage: 12V DC
Pump speed: 2500rpm (± 10%)
Water pump interface: 4PIN PWM
D-TDP：325W

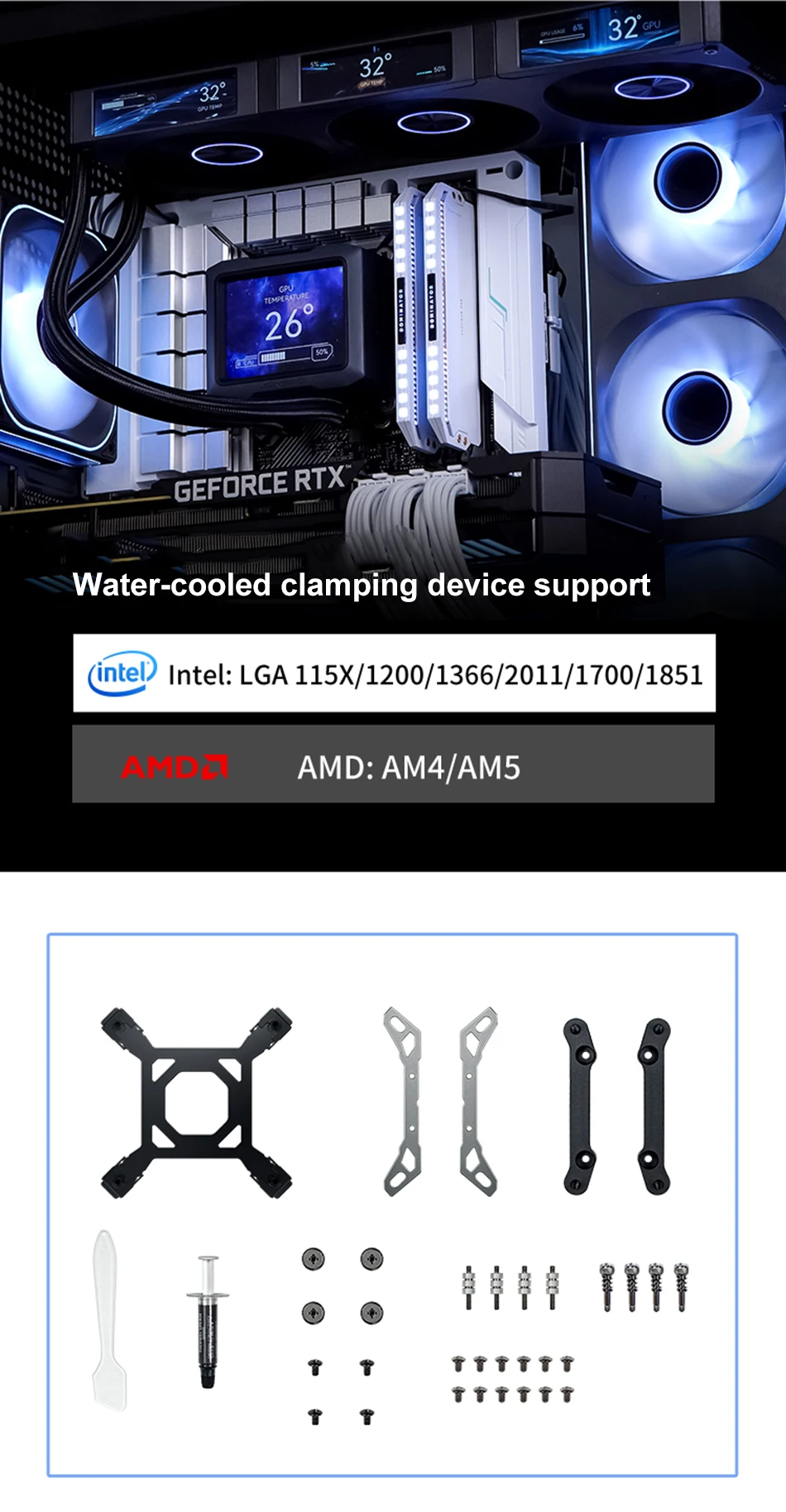

Platform support: Intel LGA115X/1200/1366/2011/1700/1851; AMD AM4/AM5
TF3-360SCB-A / TF3-360SCW-A
Product type: IPS 4-screen water-cooled
Product dimensions:
Water pump: 92.5mm * 87.5mm * 63mm;
Heat sink: 397mm * 120mm * 27mm
Pump power: ≤ 4.2W
Pump noise: ≤ 30 dB (A)
Water pump voltage: 12V DC
Pump speed: 2500rpm (± 10%)
Water pump interface: 4PIN PWM
Platform support: Intel LGA115X/1200/1366/2011/1700/1851; AMD AM4/AM5
TF3-360SC(BN)/TF3-360SC(WN)
Product type: IPS 4-screen water-cooled
Product dimensions:
Water pump: 92.5mm * 87.5mm * 63mm;
Heat sink: 397mm * 120mm * 27mm
Pump power: ≤ 4.2W
Pump noise: ≤ 30 dB (A)
Water pump voltage: 12V DC
Pump speed: 2500rpm (± 10%)
Water pump interface: 4PIN PWM
Platform support: Intel LGA115X/1200/1366/2011/1700/1851; AMD AM4/AM5

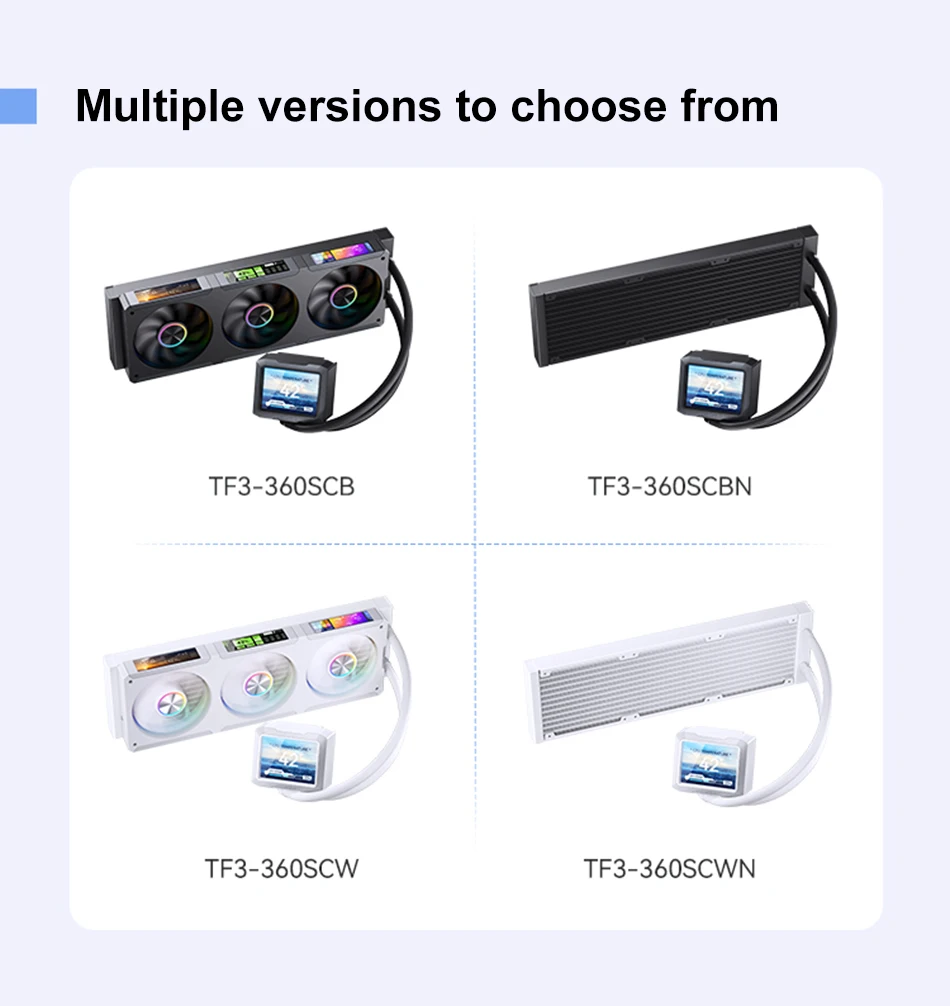

Note: TF3-360SC (BN) and TF3-360SC (WN) are fanless versions.
